Description
The award winning F501 is the smaller of the two floorstanding loudspeakers in the F500 series but capable of delivering low bass and effortless dynamics from a compact, small footprint cabinet. Bringing additional scale and power to the F500 Series’ signature clarity and articulation, the 150mm (6″) proprietary IsoFlareTM driver is accompanied by a matched 150mm (6″) bass driver. The IsoFlareTM driver delivers isotropic energy radiation with point source constant directivity providing outstanding stereo imaging, even off axis. Ideal for small to medium-sized rooms, the F501 is supplied with a dedicated plinth incorporating our BassTraxTM Tractrix diffuser system, which integrates bass energy uniformly into the room The luxuriously finished, contemporary styled cabinet is available in a choice of dark oak or black oak real wood veneer and piano gloss black or white. Enhancing its aesthetic appeal, it has a gently curved front and rear baffle which additionally benefits the acoustic performance by reducing colouration effects. The F501 is the perfect choice for a premium Home Theatre or a Hi-Fi application. |
|
![]() |
![]() |
System Type | 2 ½ way, downwards firing port, with BassTraxTM Tractrix diffuser*, twin cavity loading system |
Recommended amplifier power (Watt RMS) | 30 – 180 |
Continuous power handling (Watt RMS) | 80 |
Sensitivity (2.83 Volt @ 1m) | 91dB |
Nominal impedance | 8 Ohm |
Frequency response (-6dB typical in room) | 36Hz – 34kHz |

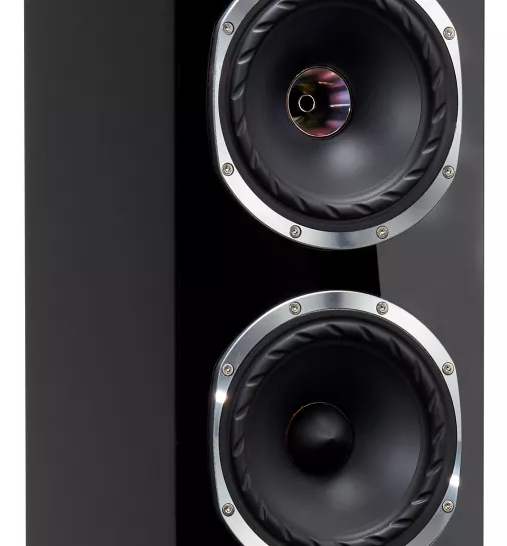

Drive unit complement | 1 x 150mm IsoFlare point source driver, multi-fibre bass / midrange cone, FyneFlute surround with 25mm magnesium dome compression tweeter, neodymium magnet system. 1 x 150mm multi-fibre bass cone, FyneFlute surround. |
Crossover frequency | 250Hz & 1.7kHz |

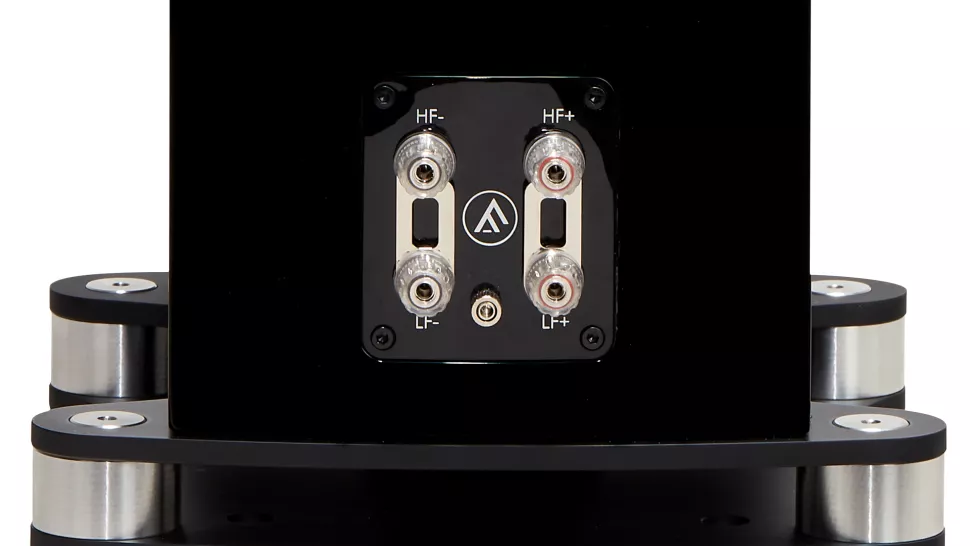

Crossover type | Bi-wired passive low loss, 2nd order low pass, 1st order high pass |
Dimensions – HxWxD | 984 x 288 x 320mm (38.7 x 11.3 x 12.7”) |
Weight – Each | 21.0kg (46.3lb) |
Finishes | Piano Gloss Walnut / Piano Gloss Black / Piano Gloss White |
