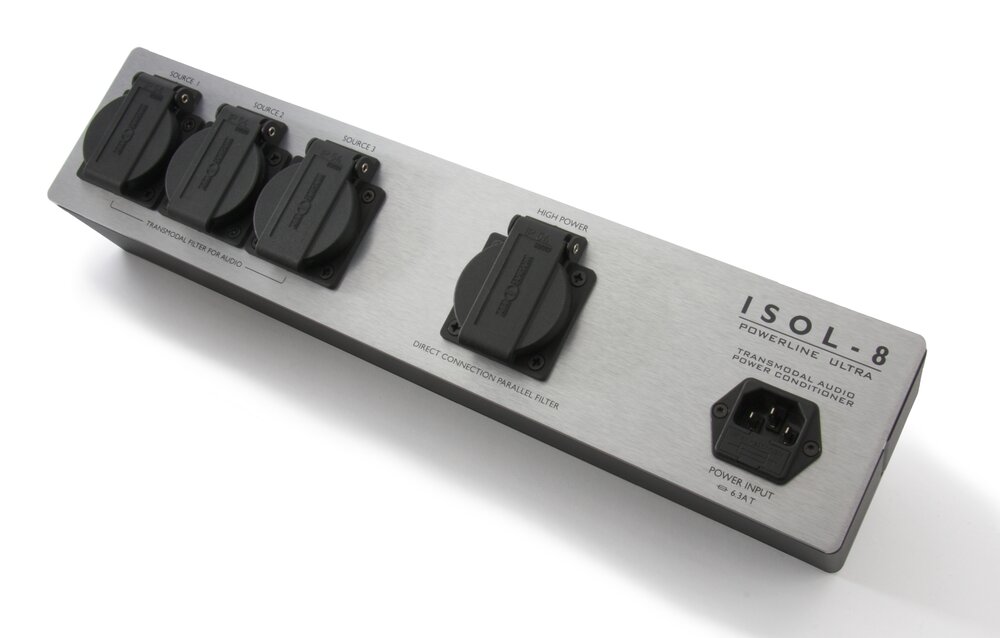

ISOL-8 POWERLINE ULTRA 4

650 € incl. VAT 24%

The PowerLine Ultra is fully power conditioned, surge protected, and optimised for audio. One Direct Connection outlet is provided, filtered by a high current shunt filter, and is suitable for loads such as amplifiers. The remaining outputs are for source components and benefit from ISOL-8s Transmodal filter technology. Noise in mains wiring can be transmitted and induced in many ways, some are easier to deal with than others. As a result, many power conditioners are not completely effective. ISOL-8s Transmodal filters effectively attenuate all modes of transmitted and induced mains noise, without dumping it to ground, so you can be sure that your system benefits from the cleanest possible power.

On Back Order 5 - 15 days

Continue Shopping ... Categories: , ,

Description

SPECIFICATIONS ALL MODELS
Number of available outlets: 4 for PowerLine Ultra and 1080
5 for PowerLine Axis
4 for PowerLine and PowerLine Plus.
6 for PowerLine Ultra 6 way and Chroma
Type of outlets available: 13A British chassis sockets
European Shuko
USA 15A
Standard Mains Inlet: IEC fused socket (Cable not supplied)
Dimensions: 400 x 83 x 88mm (W x H x D) excluding connectors
505 x 83 x 88mm (W x H x D) excluding connectors Ultra 6 way & Chroma
540 x 100 x 110mm (W x H x D) packaged
Product Weight: 1.7 Kg Powerline (6 way)
1.8 Kg PowerLine Plus (6 way)
1.9kg Axis (5 way)
2.3Kg Ultra & 1080 (4 way)
2.9Kg Ultra & Chroma (6 way)
Construction: Aluminum top plate “titanium” anodise. Powder coated steel chassis
Mains Voltage: 230VAC version for 220-240VAC
Maximum Current: PowerLine, PowerLine Plus, PowerLine Axis:
10 Amps across any one power outlet
10 Amps across all outlets
PowerLine 1080, PowerLine Chroma:
5 Amps any one source/video power outlet
5 Amps across all source/video power outlets
10 Amps any one high power outlet
10 Amps across all high power outlets
10 Amps across all outlets
PowerLine Ultra (4 and 6 way)
6.3 Amps any one source power outlet
6.3 Amps across all source power outlets
10 Amps any one high power outlet
10 Amps across all high power outlets
10 Amps across all outlets
