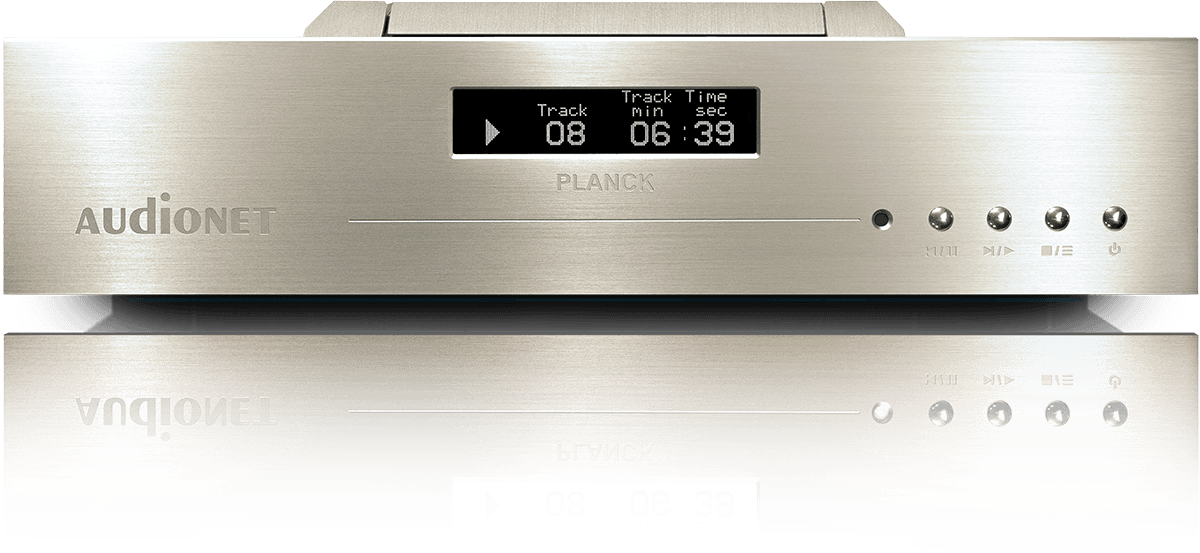

AUDIONET NEO PLANCK ULTRA REFERENCE DAC/CD-PLAYER

13.750  incl. VAT 24%

ULTRA MACHINE

Brand New 2 χρόνια Εγγύηση Κατασκευαστή. 5.000 € προκαταβολη & 24 Άτοκες Δόσεις !!!

Want to hear the music breathe? Here’s the best available lung on this planet:

The body construction completely made of non-ferro­magnetic materials combined with a massive slate board optimizes the resonance charac­teristics of PLANCK. The new design with non-visible fixation screws and with a massive and solid aluminium cover pleases both eyes and ears alike.

Converting from digital to analog, newly developed discrete output modules with extremely fast, wide-band high-performance class A output drivers ensure the perfect sonic experience. The current-voltage converter comprises absolutely temperature stable and sonically neutral high-precision resistors.

Our high-precision clock generator eliminates the infamous jitter: PLANCK gets all music data at the right time and with its correct value. And the internal frequency compen­sation equipped with custom made mica capacitors of highest grade guarantees absolute precision in the analog domain.

On Back Order 5 - 15 days

Pay a deposit of 5.000  per item

Description

Also, we gave the digital input section a completely new design. PLANCK uses the same outstanding USB Audio 2.0 technology as Audionet’s famous DNx machines:

  • USB Audio 2.0 support up to 192 kHz / 24 bits.
  • Asynchronous data connection and re-clocking ensuring a clean digital music signal.
  • The USB Audio circuitry is completely galvanically isolated from the rest of the PLANCK. Therefore no harmful reactions apply from the PC and its “dirty” power supply.
  • Separate and user-selectable electrical and optical digital inputs (SPDIF) – also using DNx technology and up to 192 kHz / 24 bit for enhanced playback of other digital sources.



The science:

Special features PLANCK

  • Top loader, decoupling aluminium and slate body construction.
  • Massive aluminium body, resonance-optimized fixation with invisible screws and Teflon bedded massive disc drawer cover made of 10 mm aluminium.
  • Additional decoupling of the drive unit, PCBs and high precision clock generator by Audionet Aligned Resonance Technology.
  • Reference drive unit CD-PRO 2LF on 8 mm Aluminium base.
  • Adaptive high precision puck and puck mounting made of POM, toroid Neodym magnet.
  • Completely separated power supplies for pickup and converter unit, digital and analog section.
  • Completely DC-coupled, no capacitor in the signal path.
  • Newly developed discrete output modules with extremely fast, wide-band high-performance Class A output drivers.
  • Current-Voltage converter with absolutely temperature stable and sound neutral high-precision resistors and with custom made mica capacitors of highest grade for internal frequency compensation.
  • D/A converter function with separate and user-selectable digital inputs: SPDIF electrical (Cinch) and optical (Toslink) as well as USB Audio 2.0 (USB type B socket).
  • All digital inputs up to 192 kHz / 24 bit.
  • Digital outputs SPDIF (electrical and optical) and AES/EBU output 44.1 KHz / 16 bit (for CD).
  • Disengageable digital outputs.
  • Remote power on/off via Audionet Link (optical cable).
  • Professional concept of operations.
  • Rhodium fuse.
  • Dedicated WATT/PLANCK Audionet metal remote control in matching color.

Special Features

  • Dedicated WATT/PLANCK Audionet metal remote control in matching color (included).
  • D/A converter with USB Audio 2.0 / SPDIF digital input (electrical & optical).
  • Toploader, aluminium and slate casing.
  • Massive disc drawer cover made of 10 mm aluminium, Teflon-bedded.
  • Decoupling of the transport unit by Audionet Aligned Resonance technology.
  • Special stabilizer made of POM.
  • Separate power supplies for digital and analog sections.
  • Audionet Intelligent Sampling technology.
  • Discrete, extremely fast and stable filter and output stages.
  • Fully DC coupled, no capacitors in the signal path.
  • Disengageable digital outputs.
  • Capable of de-emphasis processing.
  • Optional external power supply Audionet AMPERE for the analog section.

Downloads

Tech Specs / Χαρακτηριστικά

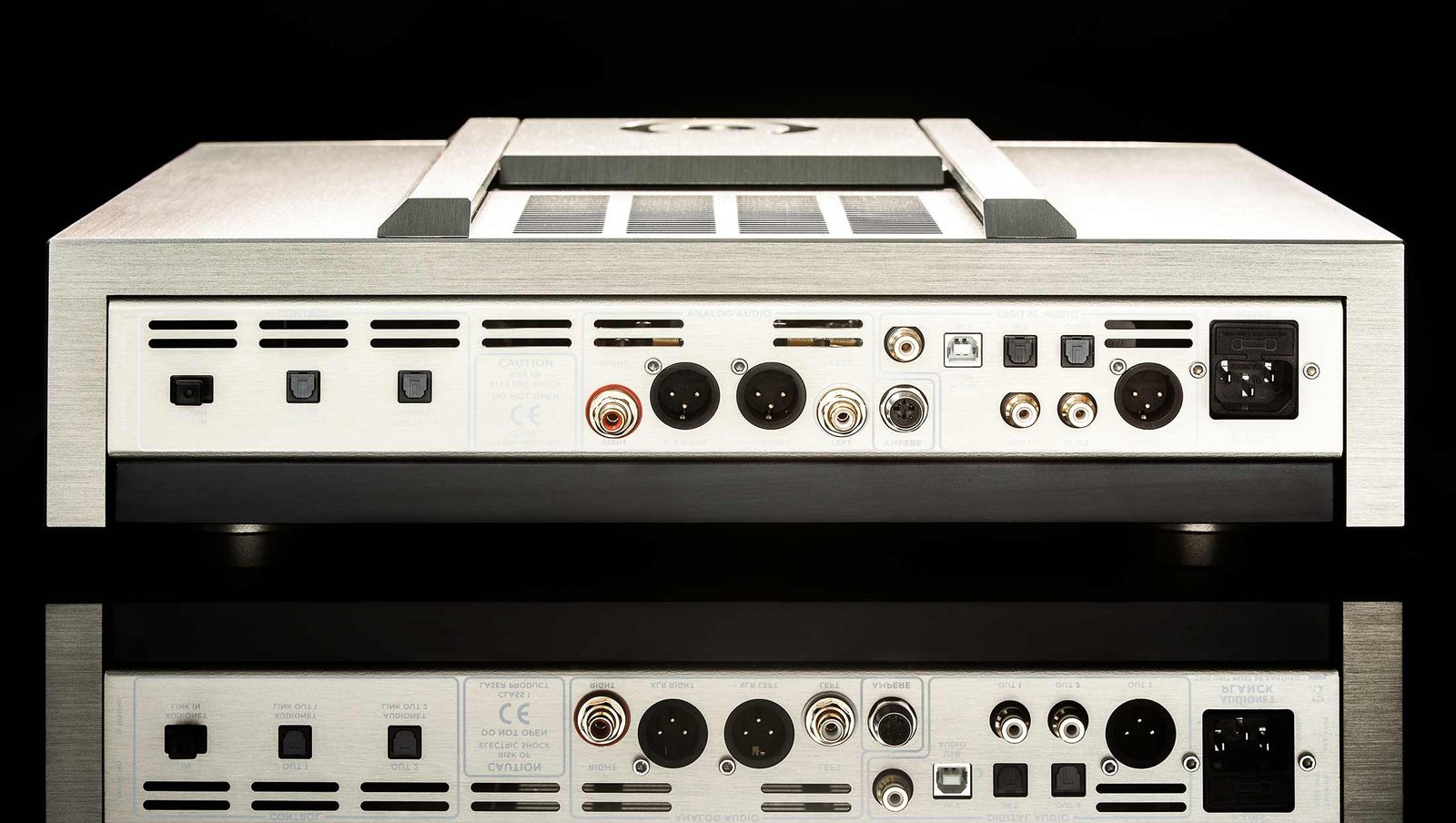

In- and Outputs
Digital audio inputs:
1 USB Type B socket, USB Audio 2.0
1 RCA, electrical digital (SPDIF)
1 TosLink, optical digital (SPDIF)
(all digital audio inputs up to 192 kHz / 24 bit)
Analog audio outputs:
1 pair RCA analog (Furutech), gold plated, teflon insulated
1 pair XLR analog, gold plated
Digital audio outputs:
2 RCA digital (SPDIF), gold plated, 600 mVss in 75 Ω
1 AES/EBU digital, 110 Ω, gold plated
1 SPDIF optical digital (TosLink)
(All digital outputs disengageable!)
Remote activation: 1 Audionet Link, optical (TosLink)
2 Audionet Link, optical (TosLink)
External power supply AMPERE: 5-pin input
Mains: IEC male power insert connector with Rhodium fuse

Laser system

Semiconductor laser, 780 nm wave length.

Norms

CD / CD-R / CD-RW (finalized and non finalized discs).
Disc sizes 80 and 120 mm, IEC 908 conform.

Converter
Stereo channels: 192 kHz / 24 bit,
Dual-Mono-DAC,
Multibit-Delta-Sigma method
Sample rate: 44.1 kHz

Technical Data
Audio bandwidth: 0 – 75,000 Hz (-3 dB) (reconstruction filter)
THD + N: < -107 dB (A-weighted) @ -6 dBFS SNR: > 111 dB
Channel separation: > 134 dB @ 10 kHz
Output impedance analog: 33 Ω real
Output level analog: 3.5 VRMS
Power consumption: < 1 W Stand by, max. 40 W
Mains: 220..240 V or 110..120 V, 50..60 Hz
Dimensions: Width 430 mm
Height 120 mm
Depth 370 mm
Weight: 25 kg
