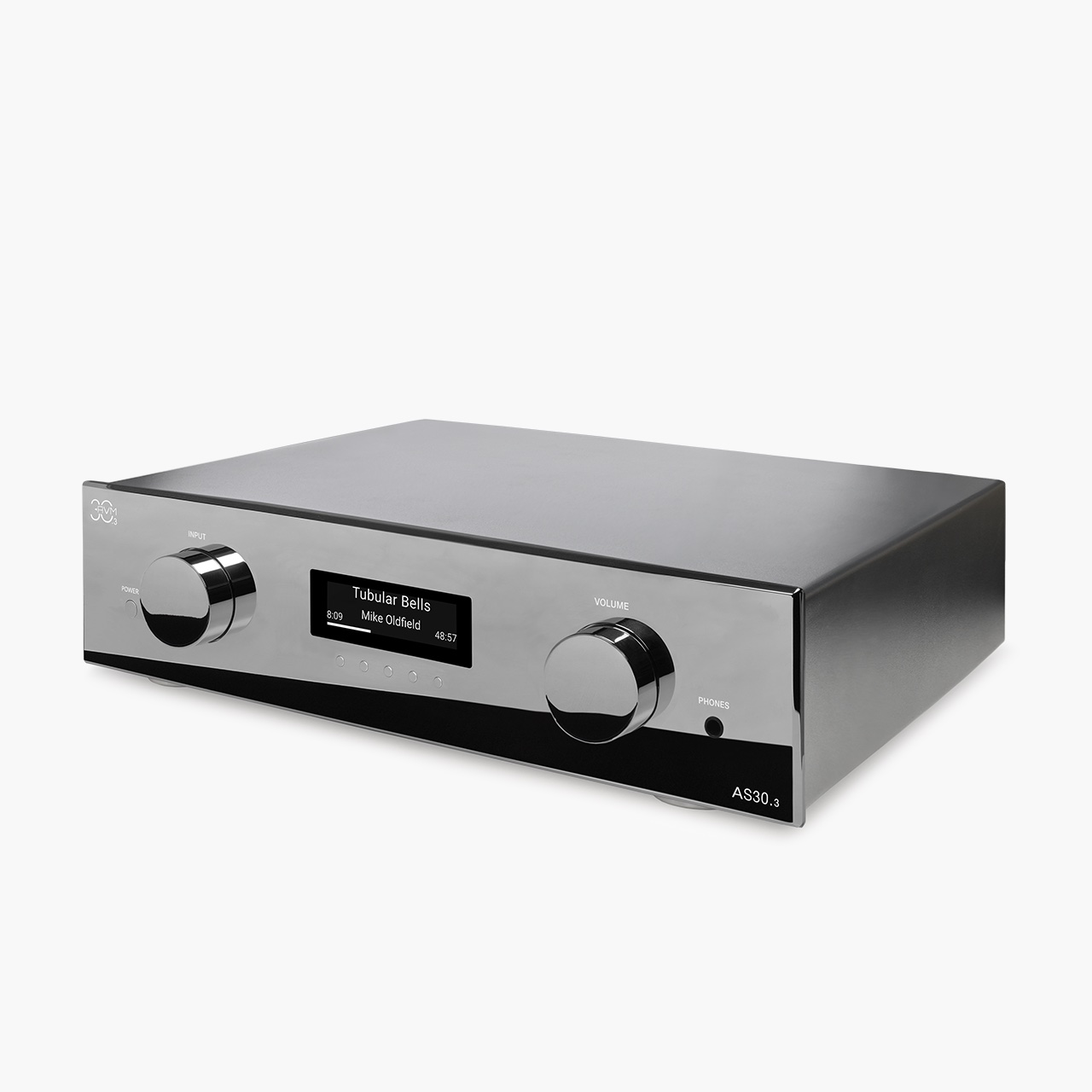

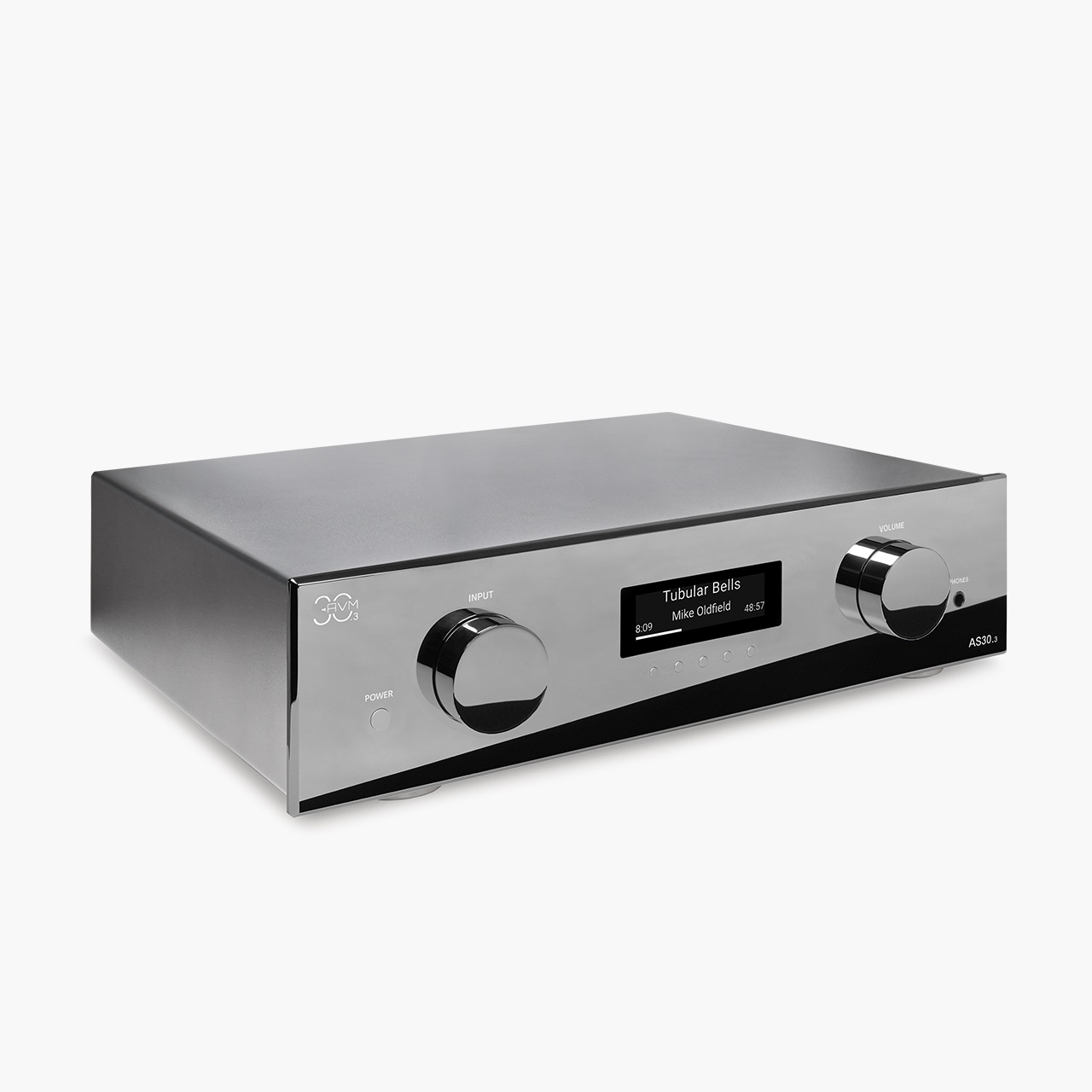

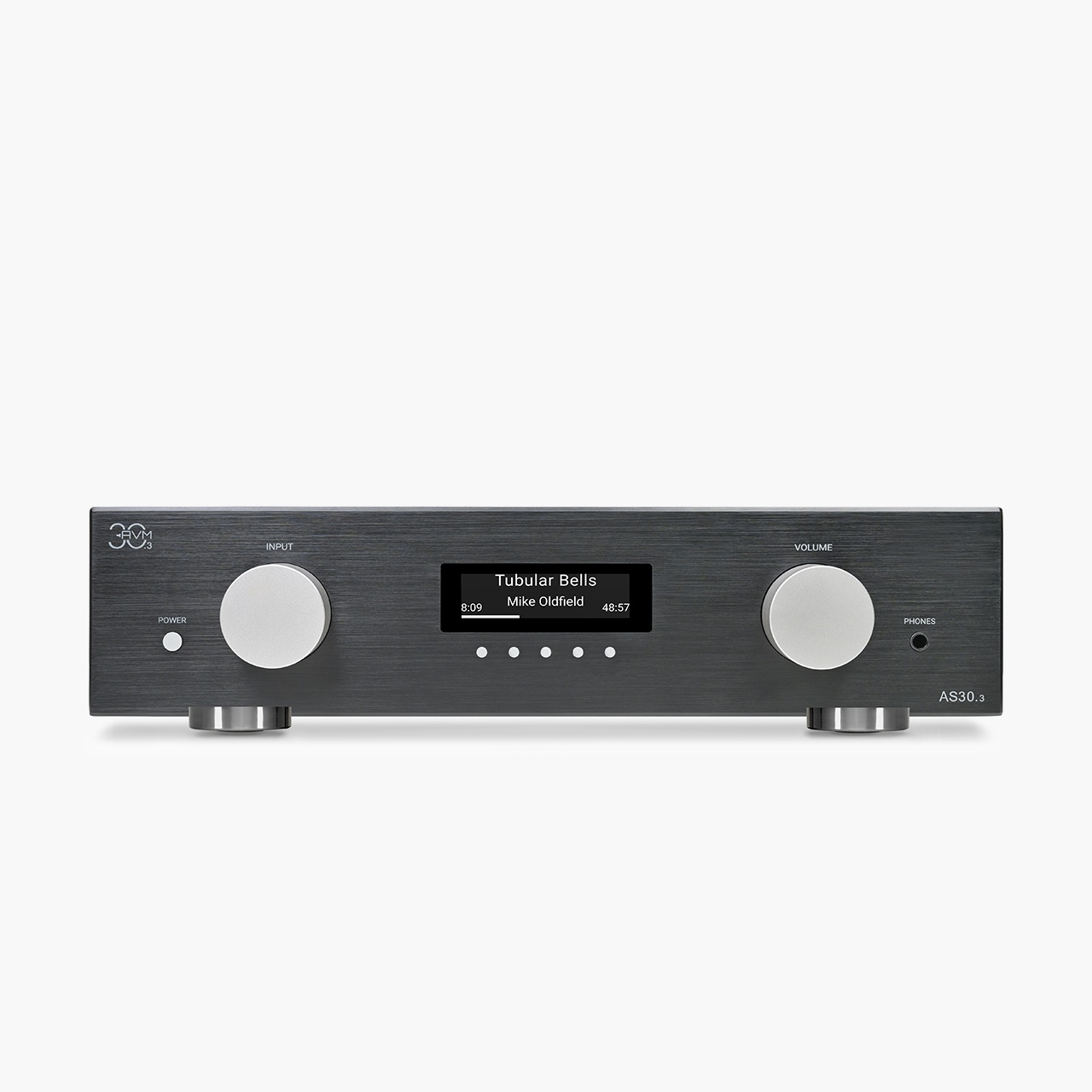

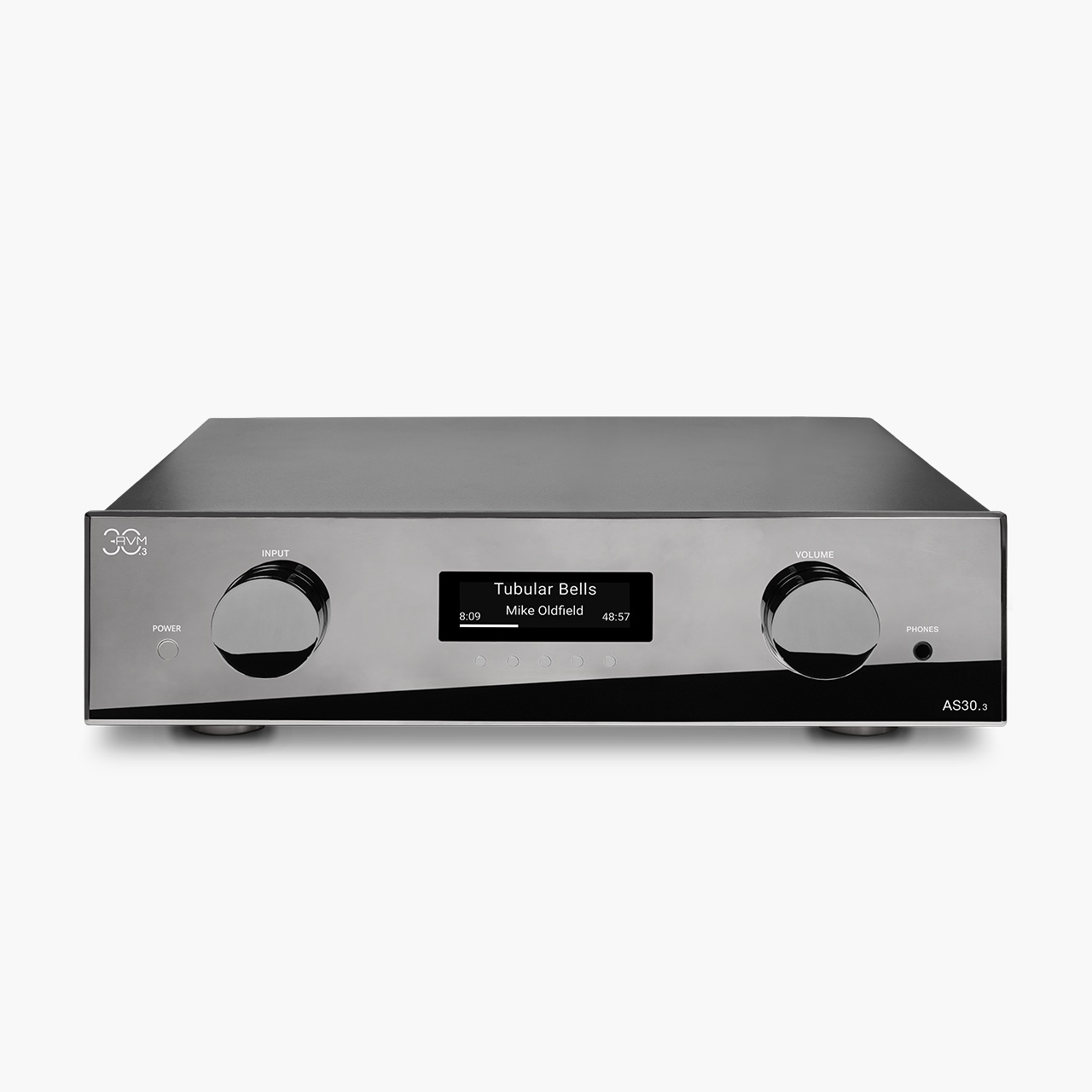

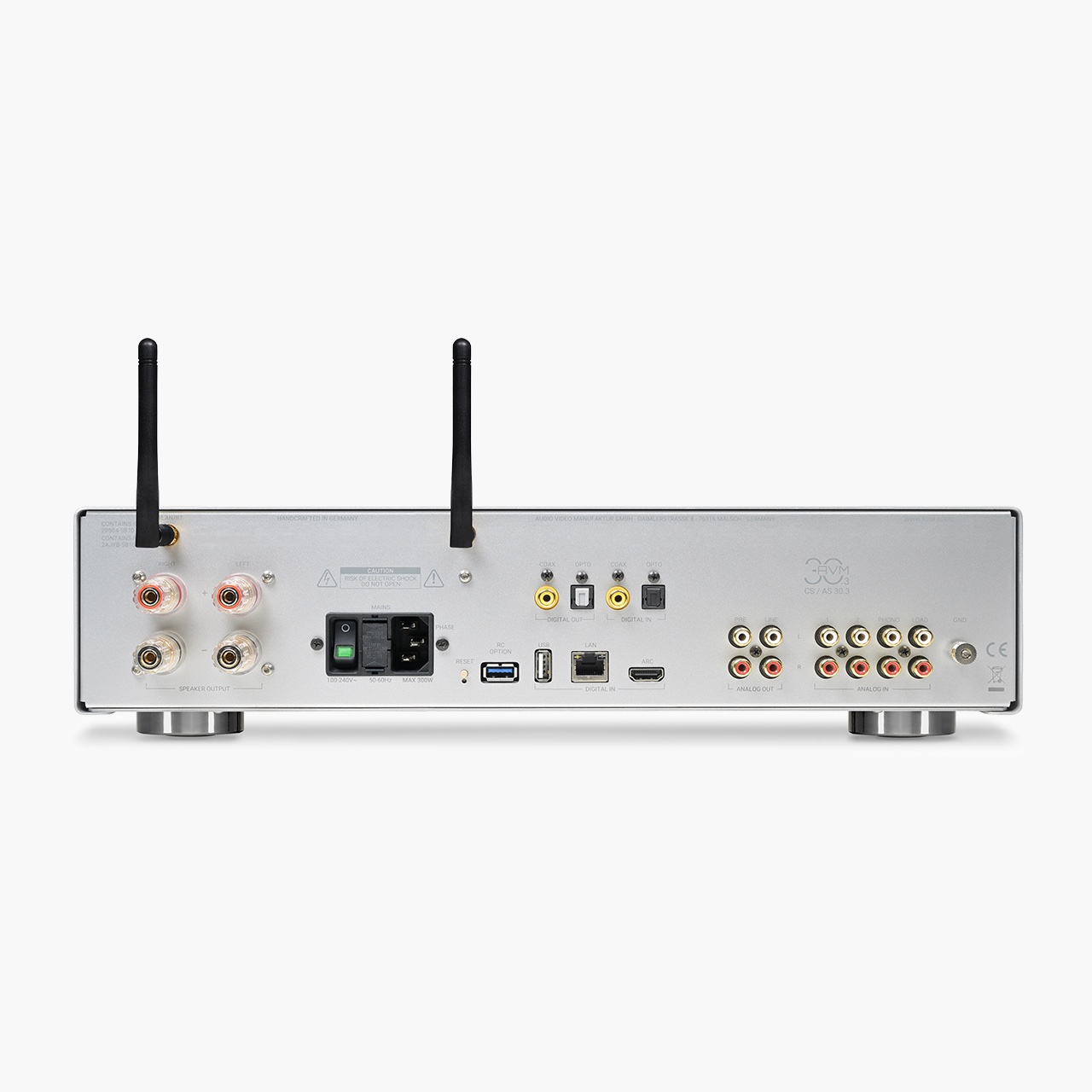

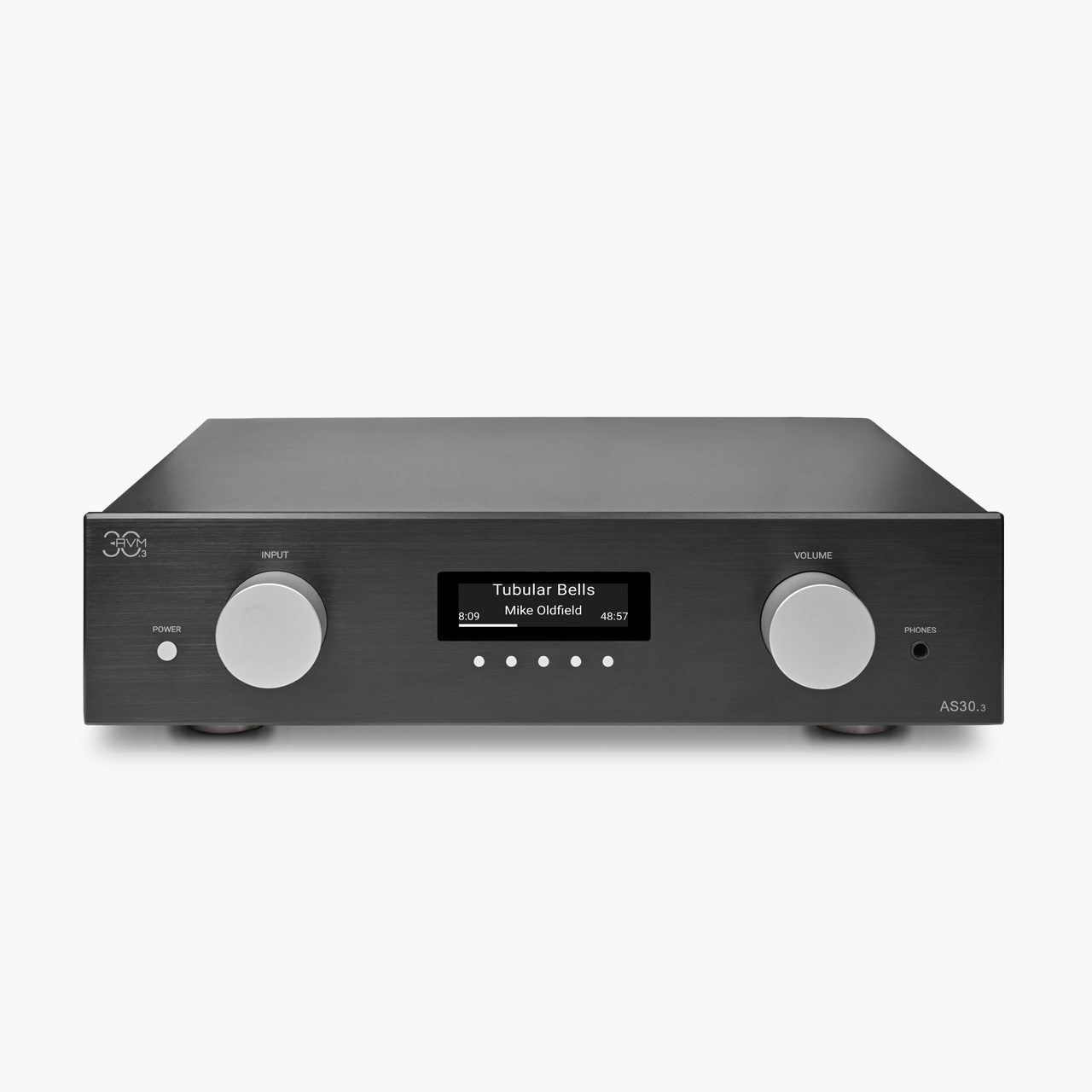

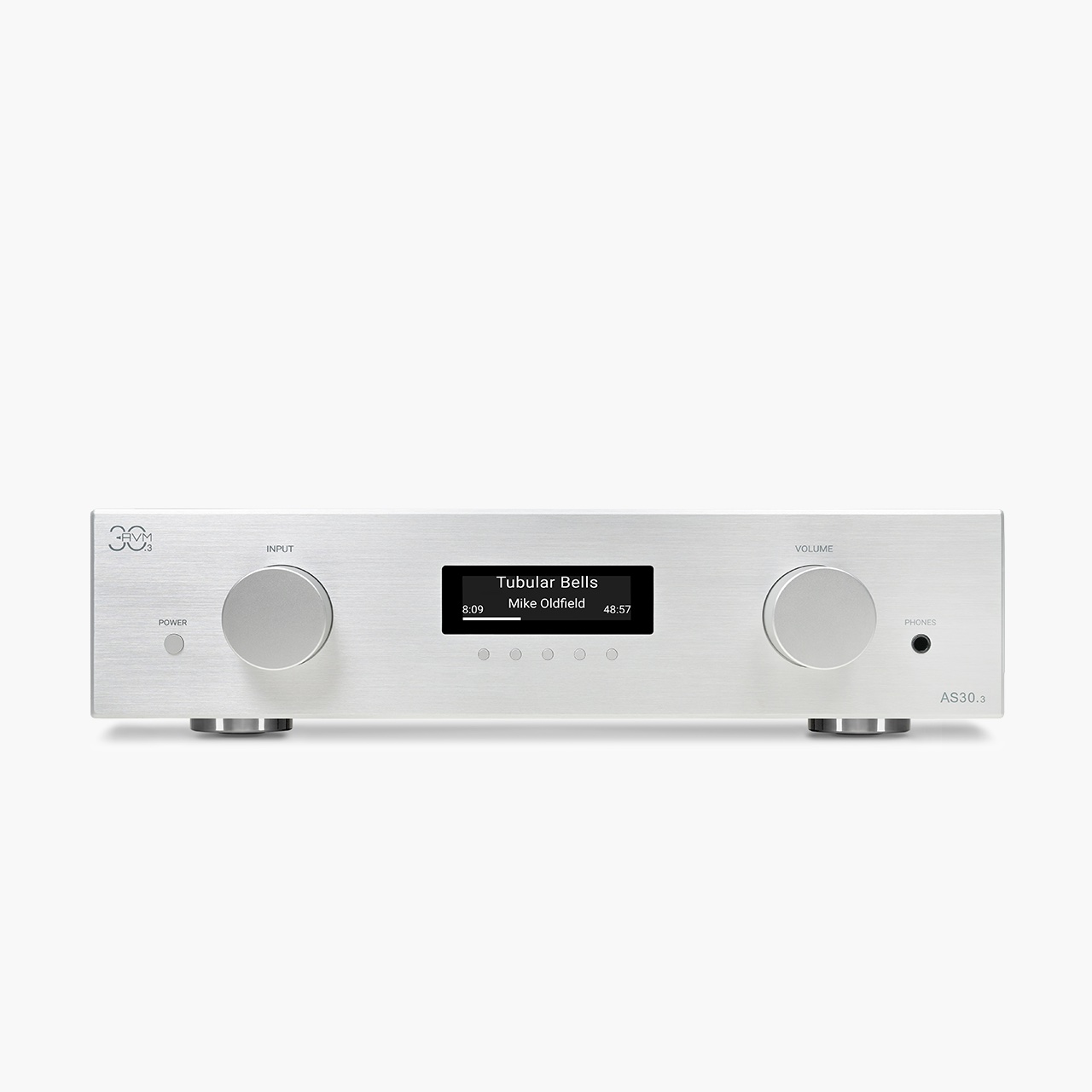

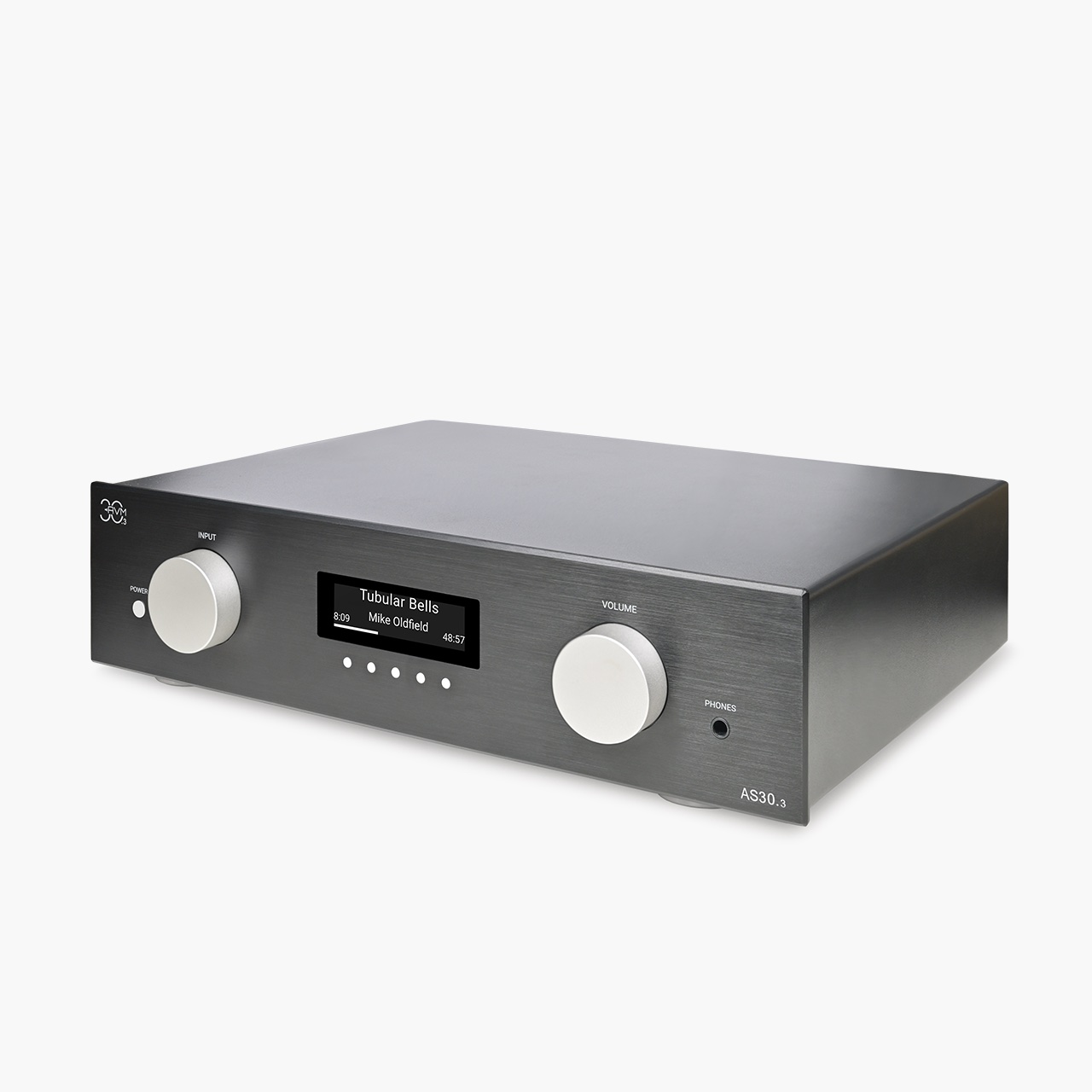

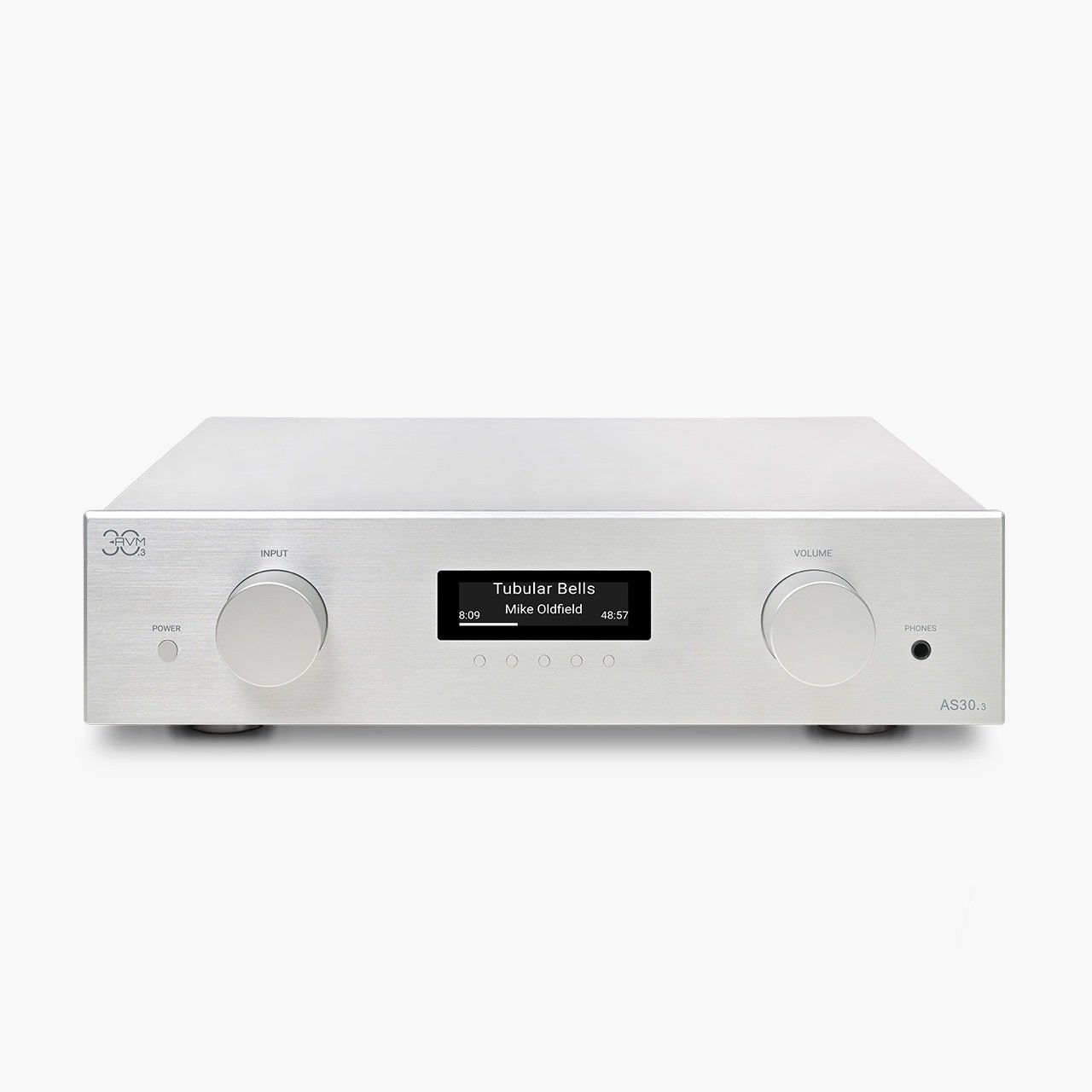

AVM30 SA30.3 Streaming Integrated Amplifier

3.770 € – 4.610 € incl. VAT 24%

AVM AUDIO SA30 Streaming & Media Player integrated amplifier 2 x 125 W @ 4 Ohm 1% THD
THD…………………………………… < 0.001%
Signal-to-noise ratio………………> 100dB

SKU: N/A Categories: , , , , , Tags: ,

Description

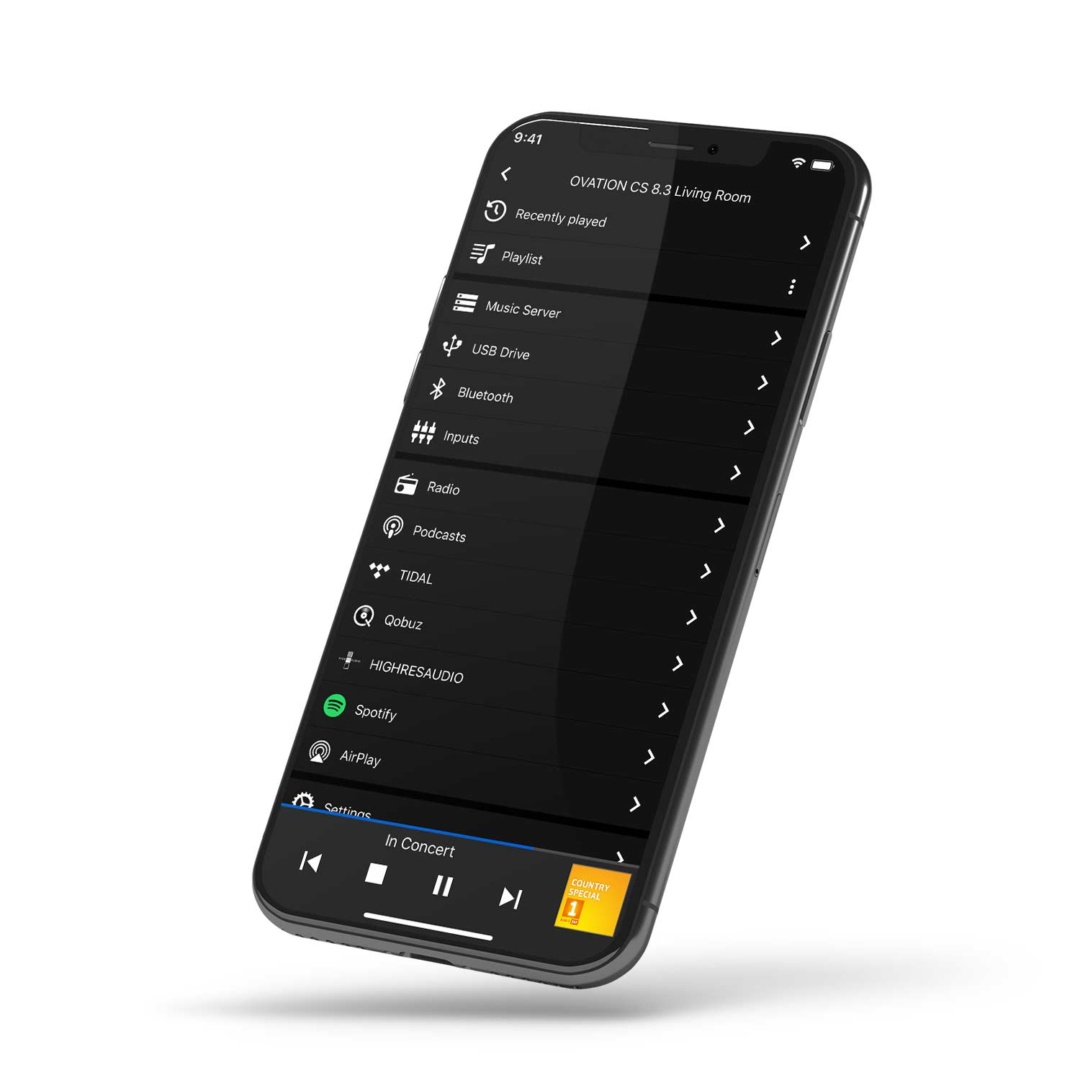

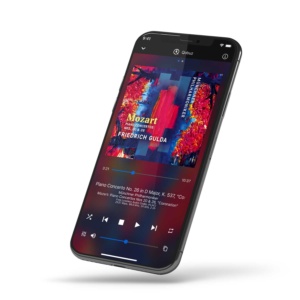

Rediscover your music with the all new RC X App

which will turn your smartphone or tablet into a smart and easy-to-use remote control to get the most outof your audiophile masterpiece with

AVM X-STREAM Engine®

including Spotify Connect, Apple Airplay 2, TIDAL, QOBUZ, Webradio, Podcasts, smart sound control, multiroom, USB stick/ HD control, and much more.











True audiophile music streaming



Discover new music in superior sound quality from audiophile streaming services such as TIDAL, QOBUZ, and HIGHR

ESAUDIO. Reconnect with your beloved music collection through Roon’s high-resolution streaming technology built right into the AVM X-STREAM Engine® featuring support for any hi-res audio format including native PCM, DSD, and MQA.

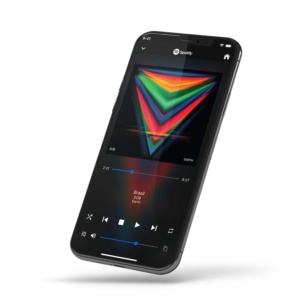

Spotify Connect

Stream and control your favourite music from Spotify in pristine premium sound quality with Spotify Connect – right from the RC X App which serves as a smart remote control for your entire Spotify collection. Setup is simple: Just open the Spotify App on your phone, tablet or computer, play a song and select ‘Devices Available’. Select your audiophile masterpiece from AVM and enjoy your music.

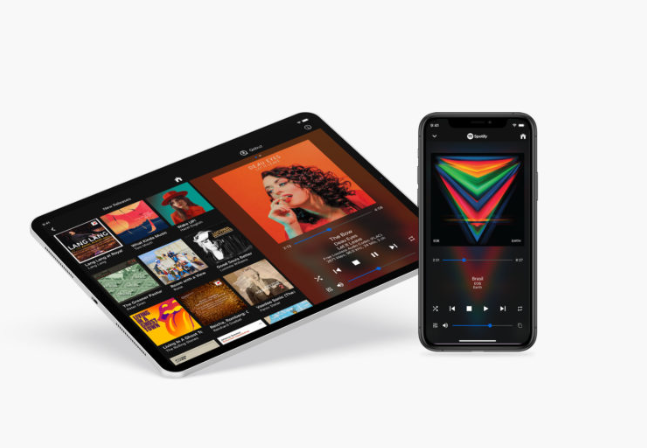

Your whole world of music in your hands

Whatever it takes, the RC X App takes it all: Stream your music

from any device supporting AirPlay 2 or Bluetooth and use the R

C X App to browse and control your local UPnP & DLNA media servers, NAS & USB drives, Compact Discs and much more – including local source selection for analog & digital inputs plus advanced playback control, volume control, gapless playback and comprehensive audio & tone control, multiroom & party sync mode and much more.

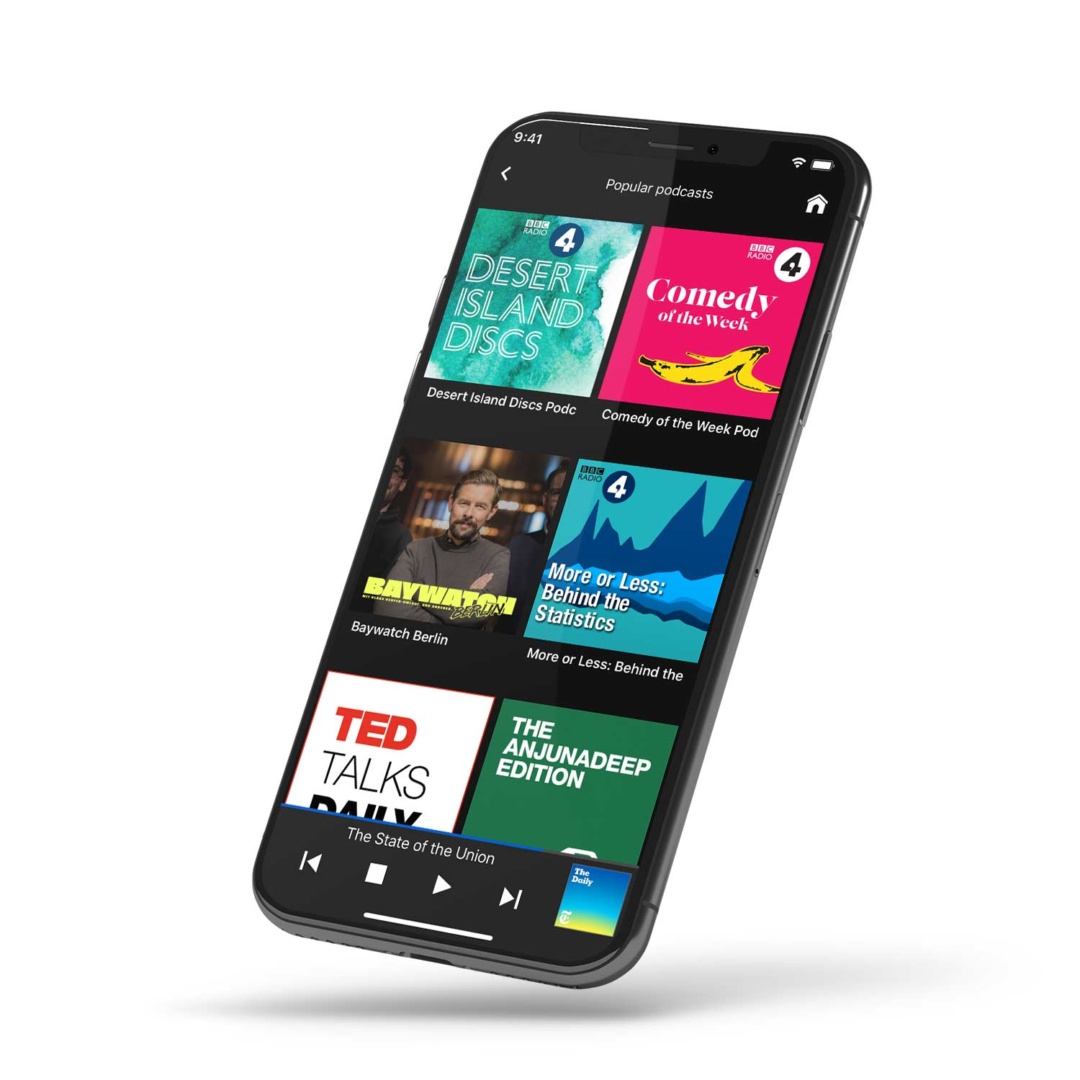

Webradio & podcasts from all over the world









Listen to your favourite local radio stations or discover new podcasts and radio shows from all over the world. The RC X App features an endless and always self-updating collection of webradio stations, podcasts and curated audio content of various genres, languages, locations, and musical styles.





5. Specifications
5.1.1. Power amplifier
Amplification factor………………………………………………………………………………………………………………..30
THD…………………………………………………………………………………………………………………………….. < 0.005%
Signal-to-noise ratio…………………………………………………………………………………………………………> 95dB
Input sensitivity …………………………………………………………………………………………………………….. 275 mV
Frequency response (at -3dB)…………………………………………………………………………. < 5Hz to > 80kHz
Output Power (1% THD, 4 Ohms, 2 Channels)2 ……………………………………………………………… x 125W
5.1.2. Pre-Out
Input resistance ………………………………………………………………………………………………………………. 3.4 kΩ
Output resistance………………………………………………………………………………………………………………470 Ω
Amplification Factor…………………………………………………………………………………………………………………1
THD…………………………………………………………………………………………………………………………….. < 0.001%
Signal-to-noise ratio……………………………………………………………………………………………………….> 100dB
Frequency response (at -3dB)…………………………………………………………………………. < 5Hz to > 80kHz
Crosstalk Attenuation (Channels)…………………………………………………………………………………….> 95dB
Crosstalk attenuation (inputs)………………………………………………………………………………………….> 85dB
Input level (1% THD)………………………………………………………………………………………………………….. 3.5 V
Output level (1% THD) …………………………………………………………………………………………………………… 3V
5.1.3. Line-Out
Output resistance……………………………………………………………………………………………………………….. 47 Ω
Amplification Factor…………………………………………………………………………………………………………………1
THD…………………………………………………………………………………………………………………………….. < 0.001%
Signal-to-noise ratio……………………………………………………………………………………………………….> 100dB
Output level (1% THD)………………………………………………………………………………………………………… 3.5 V
5.1.4. Pre-Out (Headphone-Out)
Output resistance……………………………………………………………………………………………………………….. 80 Ω
Amplification factor ………………………………………………………………………………………………………………….4
THD…………………………………………………………………………………………………………………………….. < 0.001%
Signal-to-noise ratio……………………………………………………………………………………………………….> 100dB
Output level (1% THD)………………………………………………………………………………………………………… 4.5 V

5.1.5. Phono Pre-Amp
Equalization RIAA…………………………………………………………………………………………………………… < 0.2dB
Gain MM…………………………………………………………………………………………………………………………….40dB
Signal-to-noise ratio MM……………………………………………………………………………………………..> 83dB(A)
Gain MC……………………………………………………………………………………………………………………………..60dB
Signal-to-noise ratio MC……………………………………………………………………………………………….>74dB(A)
Input level MM (1% THD)…………………………………………………………………………………………………..30 mV
Input level MC (1% THD) …………………………………………………………………………………………………….3 mV
5.1.6. CD-Player (just CS 30.3)
Playable formats …………………………………………….CD Audio, CDR (according to Red Book standard)
Frequency response CD………………………………………………………………………………………… < 20 – 20 kHz
5.1.7. Network
LAN connection (hot-plugging capable)………………………………………………………………………100Mbit/s
Supported WLAN/ Wifi standards………………………………………………… 2.4 / 5 GHz 802.11a/b/g/n/ac
Number of antennas…………………………………………………………………………………………………………………2
WPS …………………………………………………………………………………………………………………………………….. yes
5.1.8. Streaming
Max. sample rates…………………………………………………………………………..DSD256, 32Bit/384kHz PCM
Streaming Services………………………….. AirPlay, Qobuz, Roon Ready, Spotify, TIDAL, HighResAudio
Supported file formats:………………………………….WAV, MP3, WM, AAC, FLAC, ALAC, DSD, Ogg, AIFF
5.1.9. Bluetooth
Bluetooth-Standard………………………………………………………………………………………………………….. 5.0 LE
Supported Bluetooth Profiles…………………………………………………………………………… AVRCP 1.5 AD2P
5.1.10. USB-Input
USB-Standard ……………………………………………………………………………………………………………….. USB 2.0
Max. Strom……………………………………………………………………………………………………………………. 500 mA
Supported formatting: ……………………………………………………………………………….FAT16, FAT 32, NTFS
ATTENTION: The USB input is only intended for hard drives and USB sticks!
